Metro Aluminum

450T Series Strip Window

Strip Window
Thermally Broken
Yes
Glazing Type
Single, Double
U-Value
Dimensions

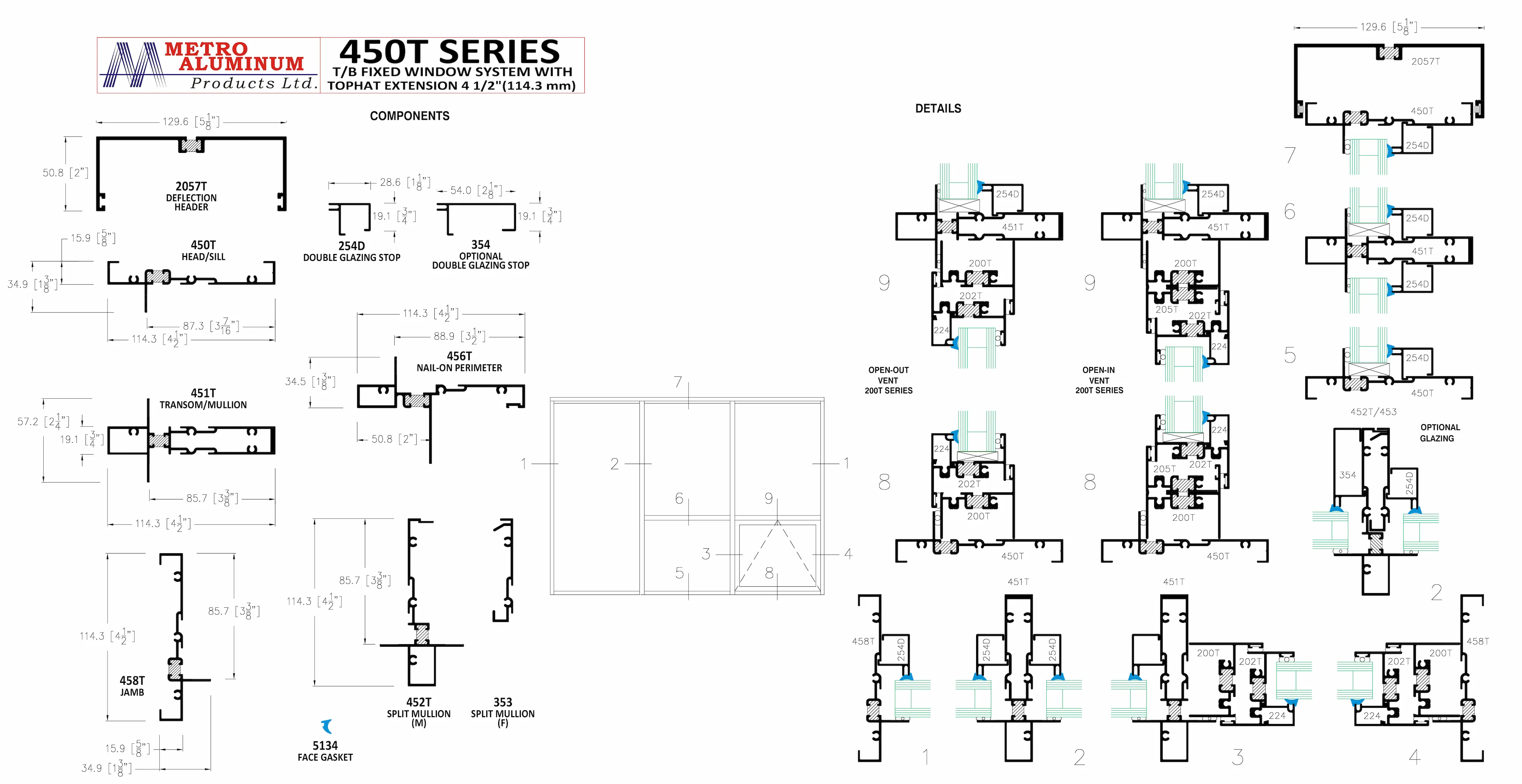

The 450T Series is the thermally broken version of our 450 Series, featuring a 4 1/4" frame depth with a poured thermal break for improved energy efficiency. It supports both single and double glazing, offers a flush stop option, and is compatible with nail-on perimeter frames for flexible installation.

System Features:

Profile Size: 1 3/8" x 4 1/4" (34.9 mm x 107.9 mm)

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness).

Thermal Performance: Poured thermal break

Stop Options: Flush glazing stop available

Header Options: Optional deflection header

Perimeter Options: Nail-on frame option available

Material Strength: T6-temper aluminum

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for exterior strip window installations where thermal performance and a clean, durable profile are required

Resources

PDF File

450T Series Thermally Broken Strip Window.pdf

2.21 KB

Download
DWG File

450T Series Thermally Broken Strip Window .dwg

1.29 KB

Download
PDF File

450T Series - Wind Load & Dead Load Chart.pdf

0.66 KB

Download
