Metro Aluminum

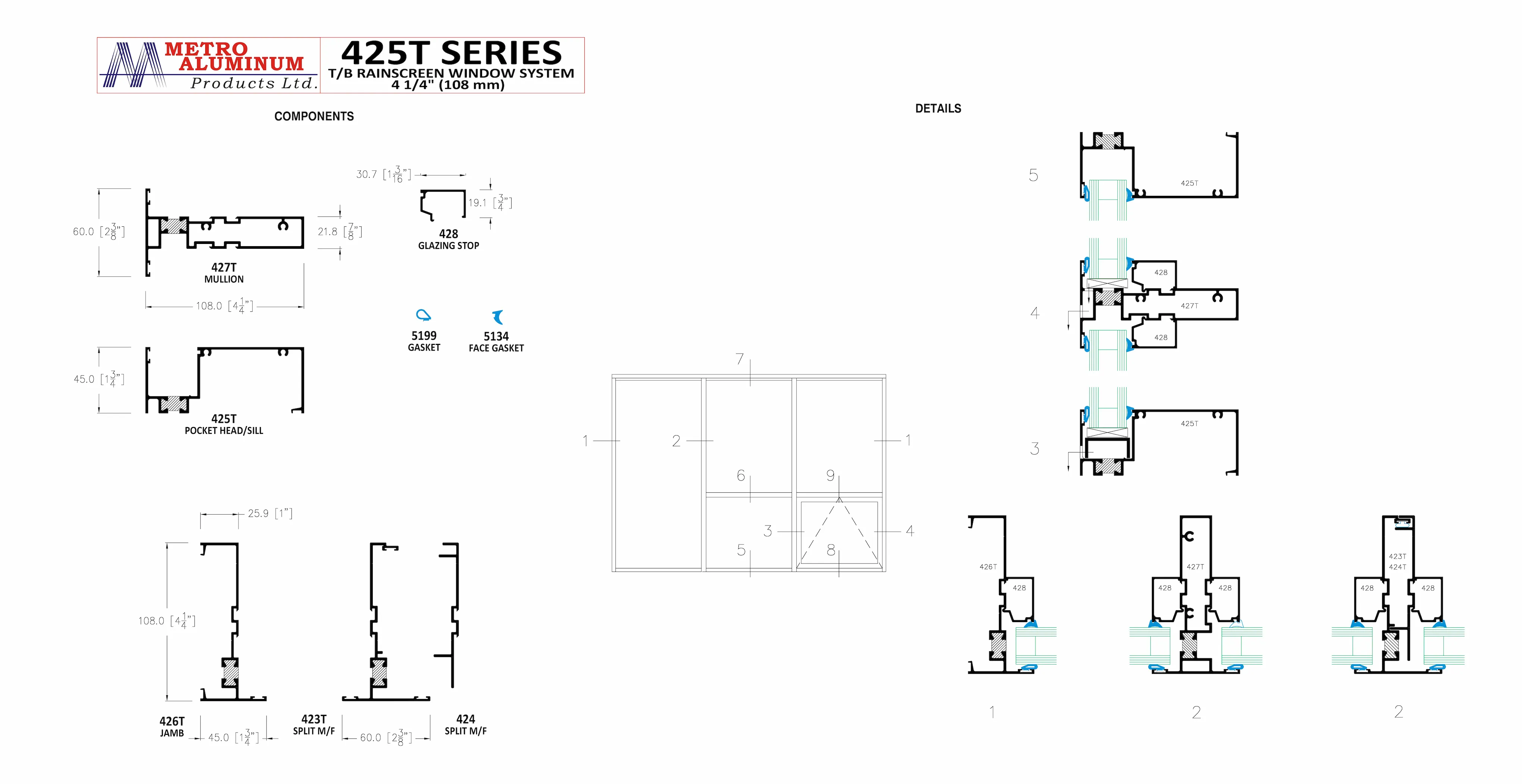

425T Series Strip Window

Strip Window
Thermally Broken
Yes
Glazing Type
Double
U-Value
Dimensions

The 425T Series is a thermally broken strip window system designed for exterior applications requiring strong thermal performance and durability. With a deeper 4 1/4" frame and slide-in gasket glazing, it offers both performance and clean aesthetics.

System Features:

Profile Size: 1 3/4" x 4 1/4" (44.5 mm x 107.9 mm)

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness).

Thermal Performance: Poured thermal break

Glazing Method: Slide-in rubber gasket

Material Strength: T6-temper aluminum

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for exterior strip window conditions requiring reliable thermal performance and simplified installation

Resources

PDF File

425T Series Thermally Broken Strip Window.pdf

1.11 KB

Download
DWG File

425T Series Thermally Broken Strip Window.dwg

1.12 KB

Download
