Metro Aluminum

2100T Series Storefront

Storefronts
Thermally Broken
Yes
Glazing Type
Double
U-Value
Dimensions

The 2100T Series is a thermally broken, double-glazed storefront system offering the same profile dimensions and compatibility as the 2050 Series, with a more cost-effective design. It features a poured thermal break and is ideal for projects where energy efficiency is essential but budget considerations are a priority.

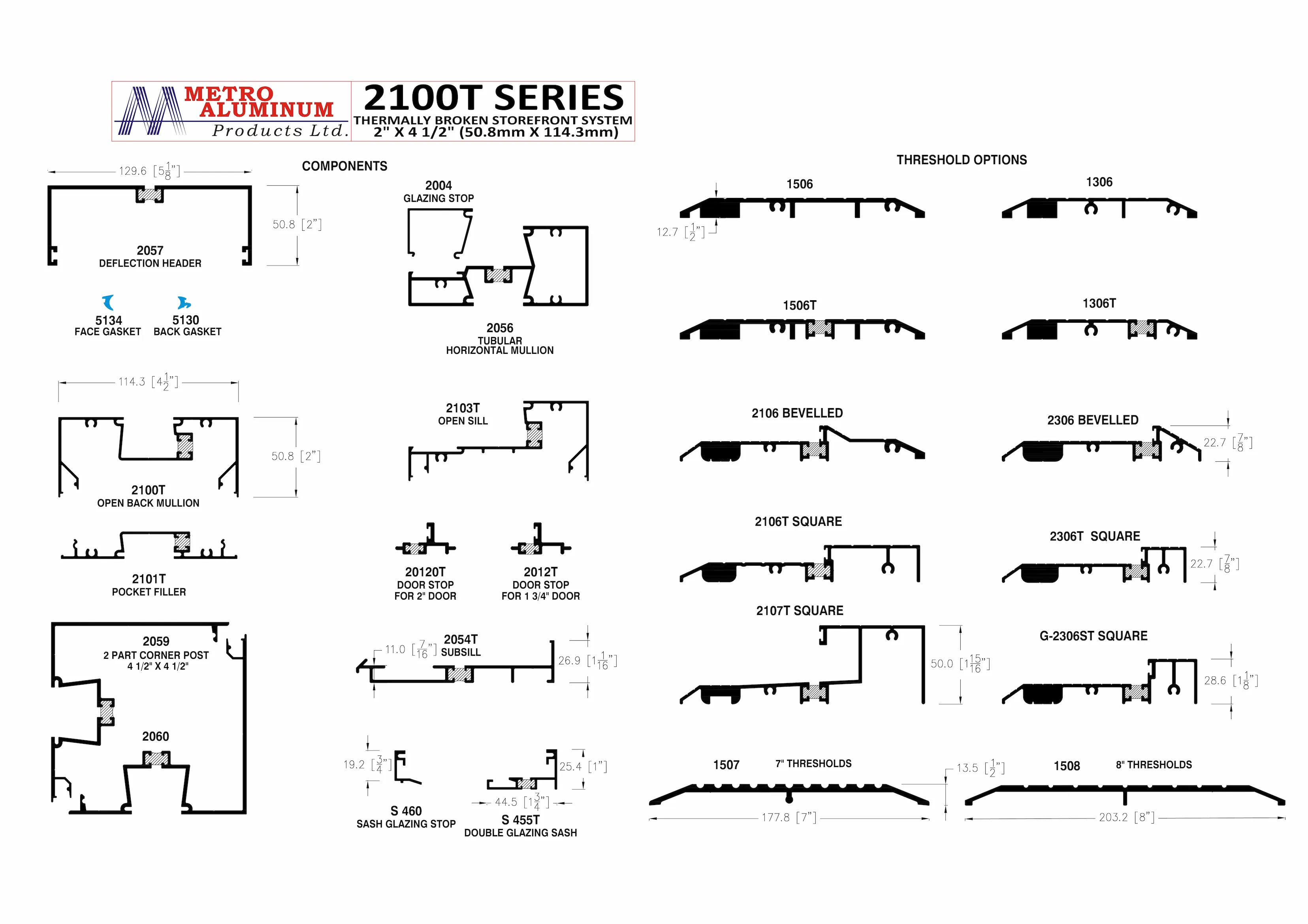

System Features:

Profile Size: 2" x 4 1/2" (50.8 mm x 114.3 mm)

Glazing: Double-glazed ( 15/16" overall thickness)

Thermal Performance: Poured thermal break

Material Strength: T6-temper aluminum for durability

Door Compatibility: Fully compatible with all Metro Aluminum doors

Closer Integration: Allows seamless adaptation for concealed overhead door closers

Header Options: Optional deflection header available

Additional Options: Subsills and corner post configurations available

Threshold Options: Optional thermally broken 6" thresholds in beveled or square-back profiles, and heavy-duty 7" and 8" flat thresholds — all 1/2" thick and engineered for strength

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Suitable for exterior commercial storefronts requiring thermal performance with value-focused design

Resources

PDF File

2100T Series Theramally Broken Storefront.pdf

1.82 KB

Download
DWG File

2100T Series Thermally Broken Storefront.dwg

1.38 KB

Download
