Metro Aluminum

1300 Series Storefront

Storefronts
Thermally Broken
No
Glazing Type
Single
U-Value
Dimensions

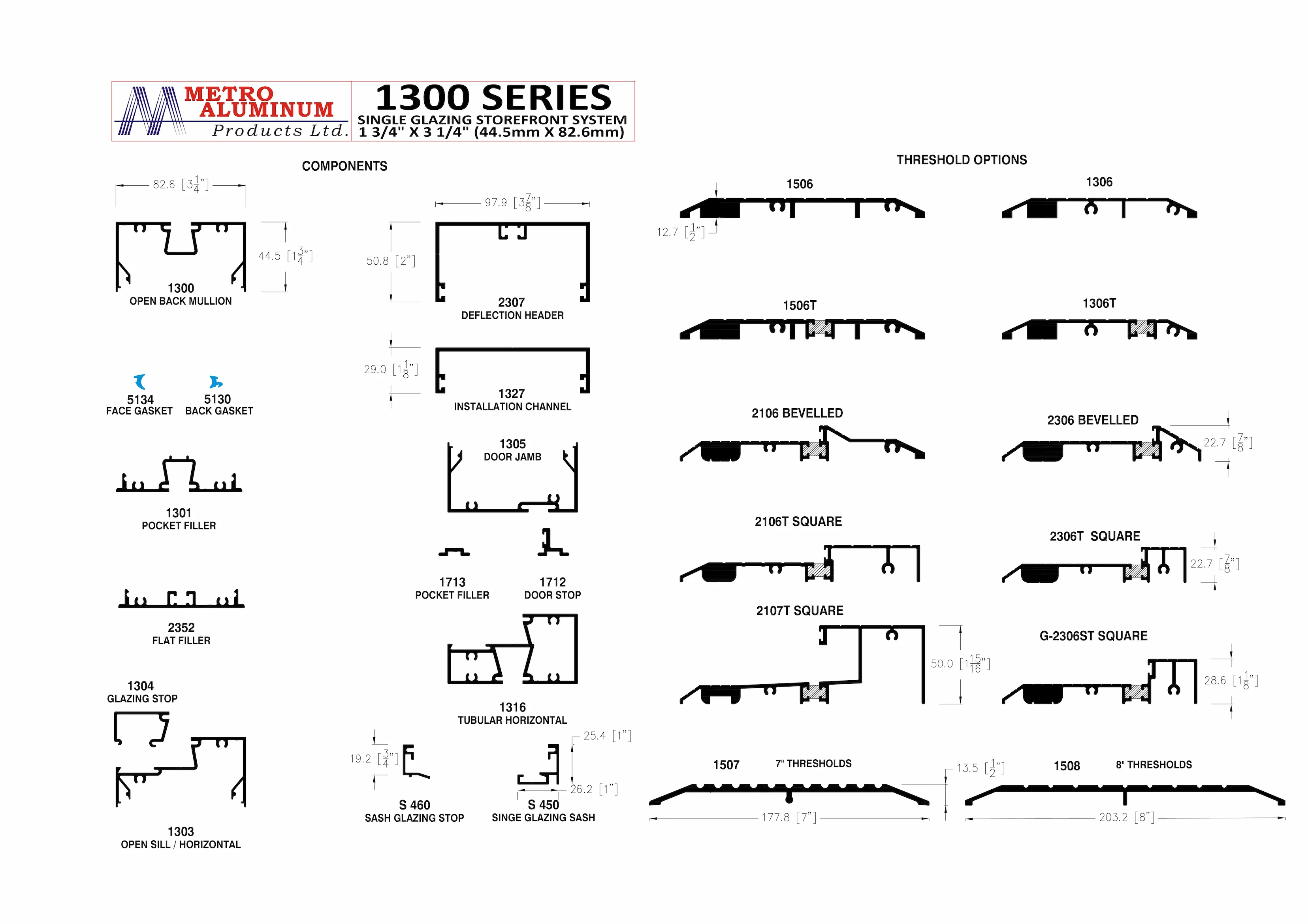

The 1300 Series is a single-glazed, non-thermally broken storefront system with a compact profile, ideal for interior or moderate climate applications. It is fully compatible with Metro Aluminum doors and offers flexible design options.

System Features:

Profile Size: 1 3/4" x 3 1/4" (44.5 mm x 82.6 mm)

Glazing: Single glazed (5 mm / 6 mm)

Thermal Performance: Non-thermally broken

Material Strength: T6-temper aluminum for enhanced strength and durability

Door Compatibility: Fully compatible with all Metro Aluminum doors

Header Options: Optional deflection header available

Threshold Options: Optional thermally broken 5" thresholds in beveled or square-back profiles, and heavy-duty 7" and 8" flat thresholds — all 1/2" thick and engineered for strength

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Suitable for interior or mild-climate commercial storefronts

Resources

PDF File

1300 Series Storefront.pdf

1.91 KB

Download
DWG File

1300 Series Storefront.dwg

1.29 KB

Download
