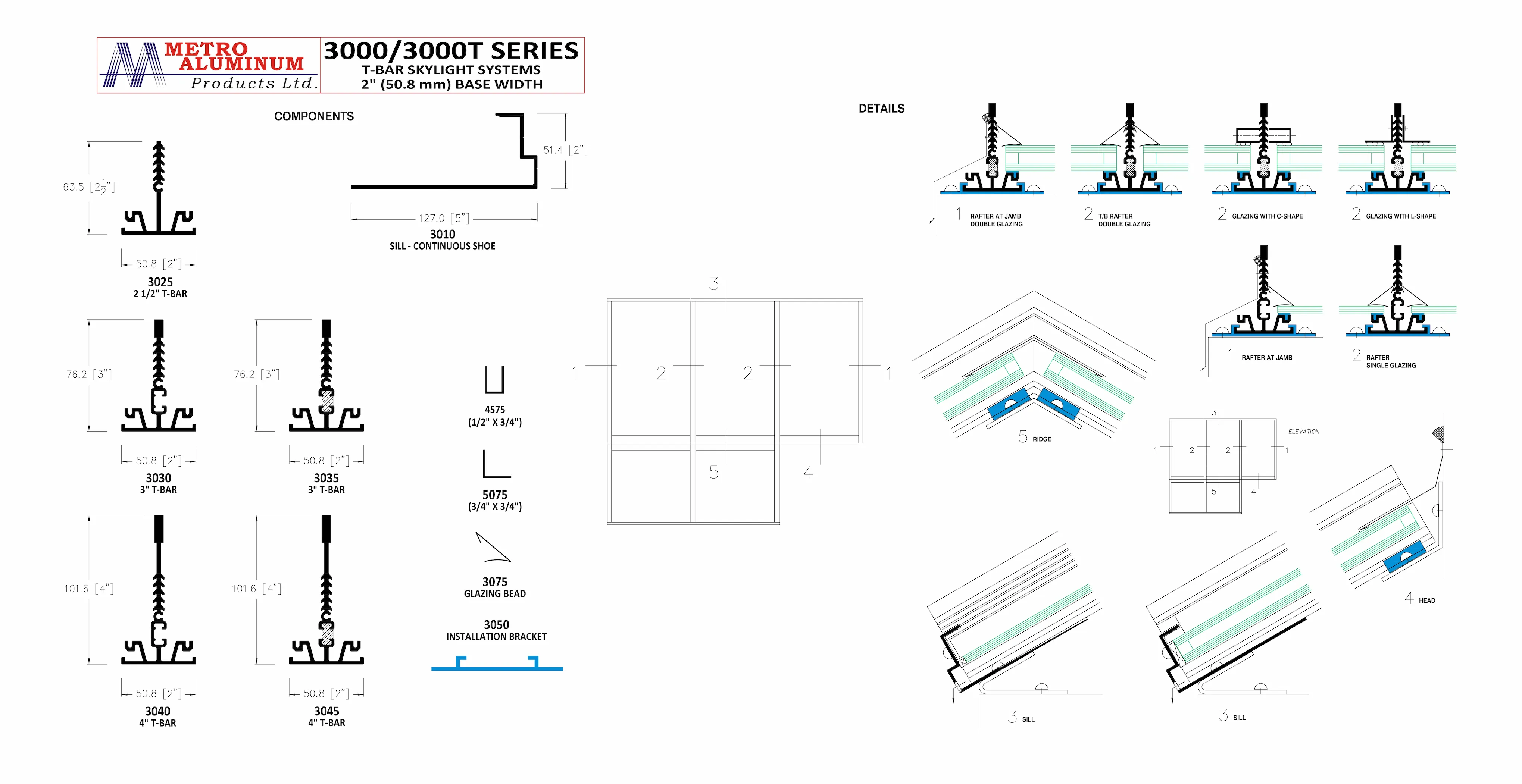

3000/3000T Series T-bar Skylight

The 3000 and 3000T Series T-Bar Systems are designed for versatile fixed glazing applications. With a consistent 2" (50.8 mm) face width and various back section heights, they offer both non-thermal and thermally broken options to suit a wide range of project requirements. Ideal for fixed windows, interior partitions, and glazing transitions.

System Features:

Face Width: 2" (50.8 mm)

Back Section Heights (Non-Thermal): 2 1/2" (63.5 mm), 3" (76.2 mm), 4" (101.6 mm)

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness). Other glass thicknesses may be accommodated depending on the cap used.

Thermal Performance: Poured thermal pocket

Back Section Heights (Thermally Broken – 3000T): 3" (76.2 mm), 4" (101.6 mm)

Glazing Bead Options: Multiple profiles available to suit different glass configurations

Sill Condition: Continuous shoe sill for clean lines and structural support

Material Strength: T6-temper aluminum

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Suitable for fixed glazing, interior divisions, and strip window segments requiring aesthetic consistency and structural performance
