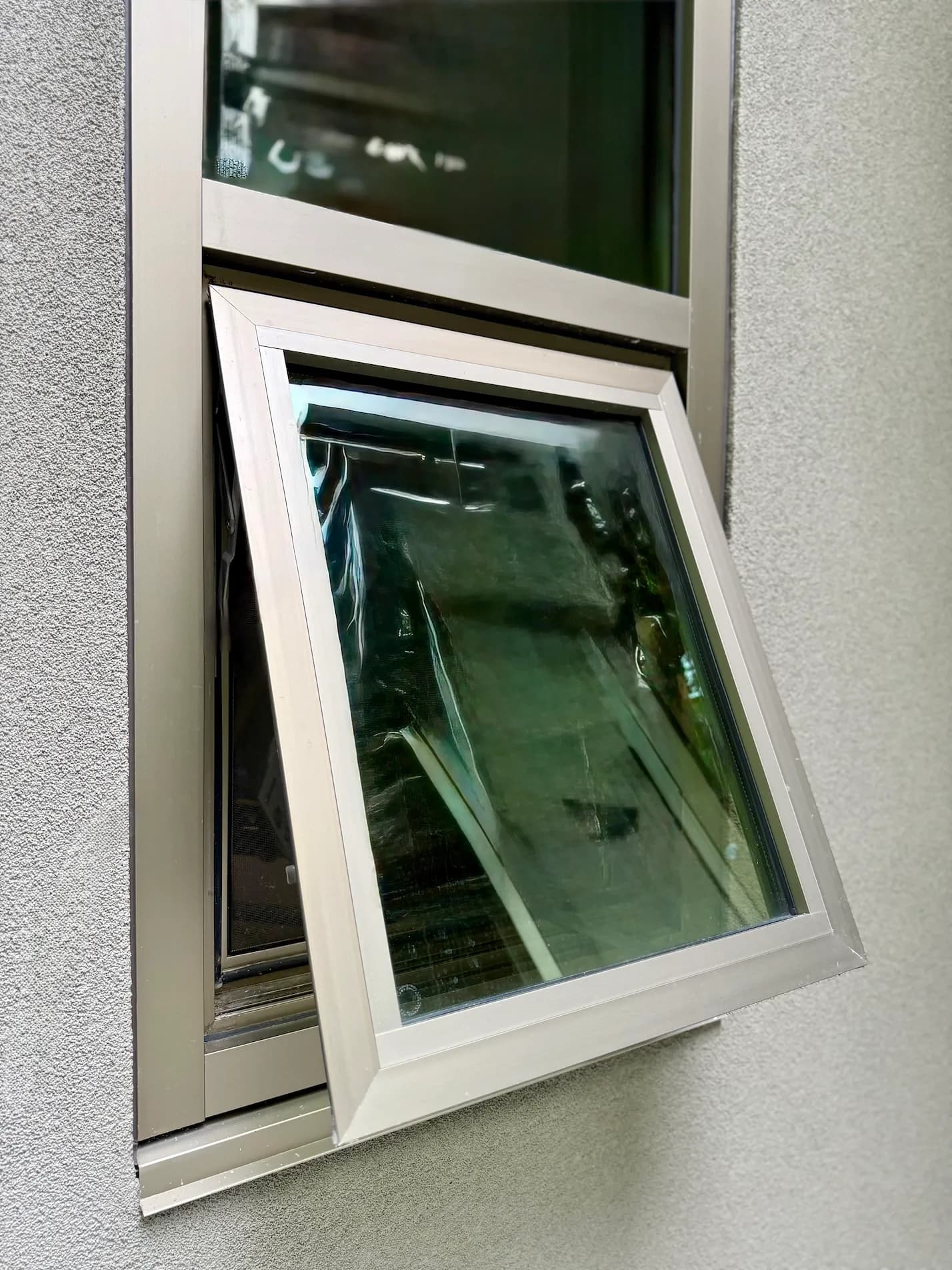

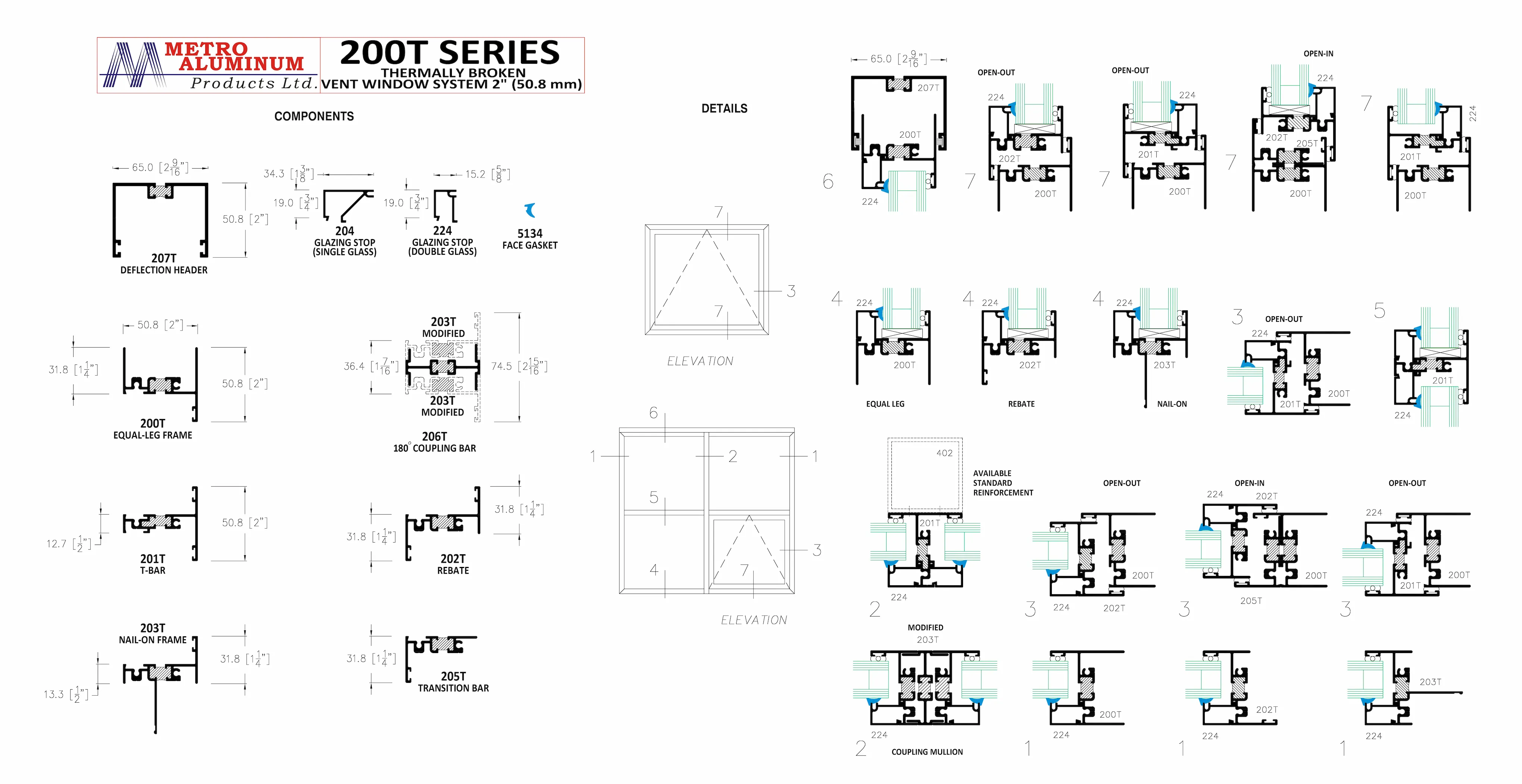

200T Series Operable Window

The 200T Series is a thermally broken operable vent system engineered for exterior use. It features a poured thermal break for improved energy efficiency and can be integrated into storefronts, curtain wall systems, or rough openings while maintaining a consistent appearance with fixed glazing systems.

System Features:

Performance Classification: CW

Performance Grade: PG 60

Application: Exterior use (thermally broken with poured thermal break)

Installation: Fits into storefront, curtain wall, strip window, or rough openings

Vent Operation: Inswing or outswing; top-hung or bottom-hung

Material Strength: T6-temper aluminum for enhanced strength and durability

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness)

Glazing Options: Inside or outside glazed

Header Options: Deflection header compatible

Framing Options: T-bar options available

Perimeter Options: Nail-on frame option available Performance Classification

Screens: Optional screen systems available

Hardware: Compatible with a variety of hardware types

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available
