500T Series Wide Stile Door

The 500T Series Thermally Broken Wide Stile Door combines a monumental appearance with superior thermal performance and durability, ideal for prestigious commercial and institutional settings.

Key features include:

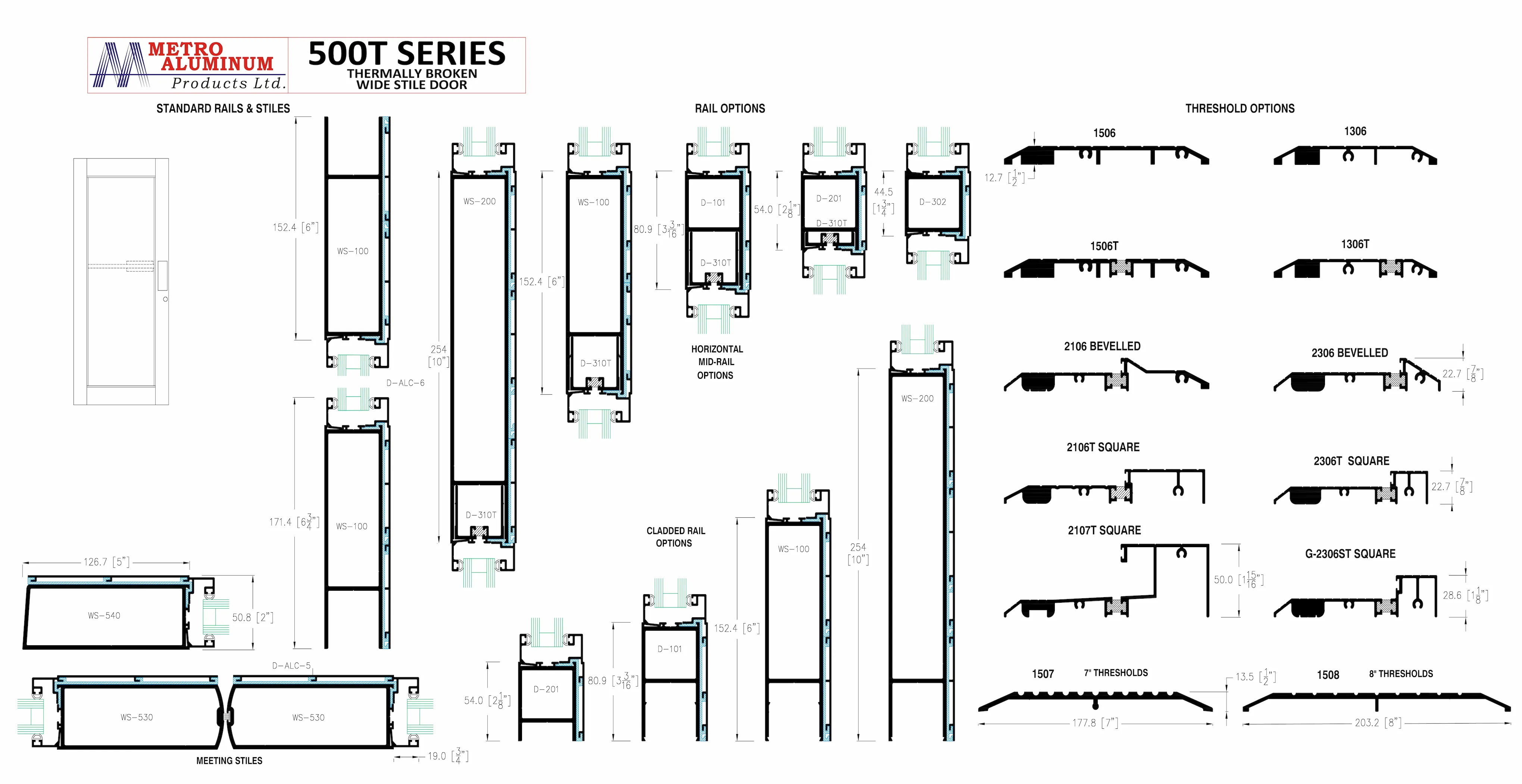

Stile Width: 5" (127 mm)

Top Rail: 6" (152.4 mm) (optional: 2 1/8" [54 mm], 3 3/16" [81 mm], or 10" [254 mm])

Bottom Rail: 6" (152.4 mm) (optional: 2 1/8" [54 mm], 3 3/16" [81 mm], or 10" [254 mm])

Mid-Rail Options: 1 3/4" (44.5 mm), 2 1/8" (54 mm), 3 3/16" (81 mm), 6" (152.4 mm), or 10" (254 mm)

Door Thickness: 2" (50.8 mm)

Glazing: Double glazed (15/16" overall thickness)

Thermally Broken/Insulated Rails and Stiles: Ensures optimal thermal insulation, reducing energy loss and enhancing comfort.

Sealed Unit Glazing: Providing enhanced weather resistance and improved insulation.

Heavier Duty Construction: Built for durability and longevity, ensuring reliable performance and high-traffic areas.

Material Strength: T6-temper aluminum for enhanced strength and durability

Compatibility with Metro Thermally Broken Framing: Seamlessly integrates with Metro framing systems for a cohesive installation.

Welded Corners: Each corner is welded & bolted for enhanced structural integrity.
