500 Series Wide Stile Door

The 500 Series Wide Stile Door offers a truly monumental appearance with enhanced strength and durability, combining grandeur with functionality, making it ideal for prestigious commercial and institutional settings that demand both aesthetic appeal and robust performance.

Key features include:

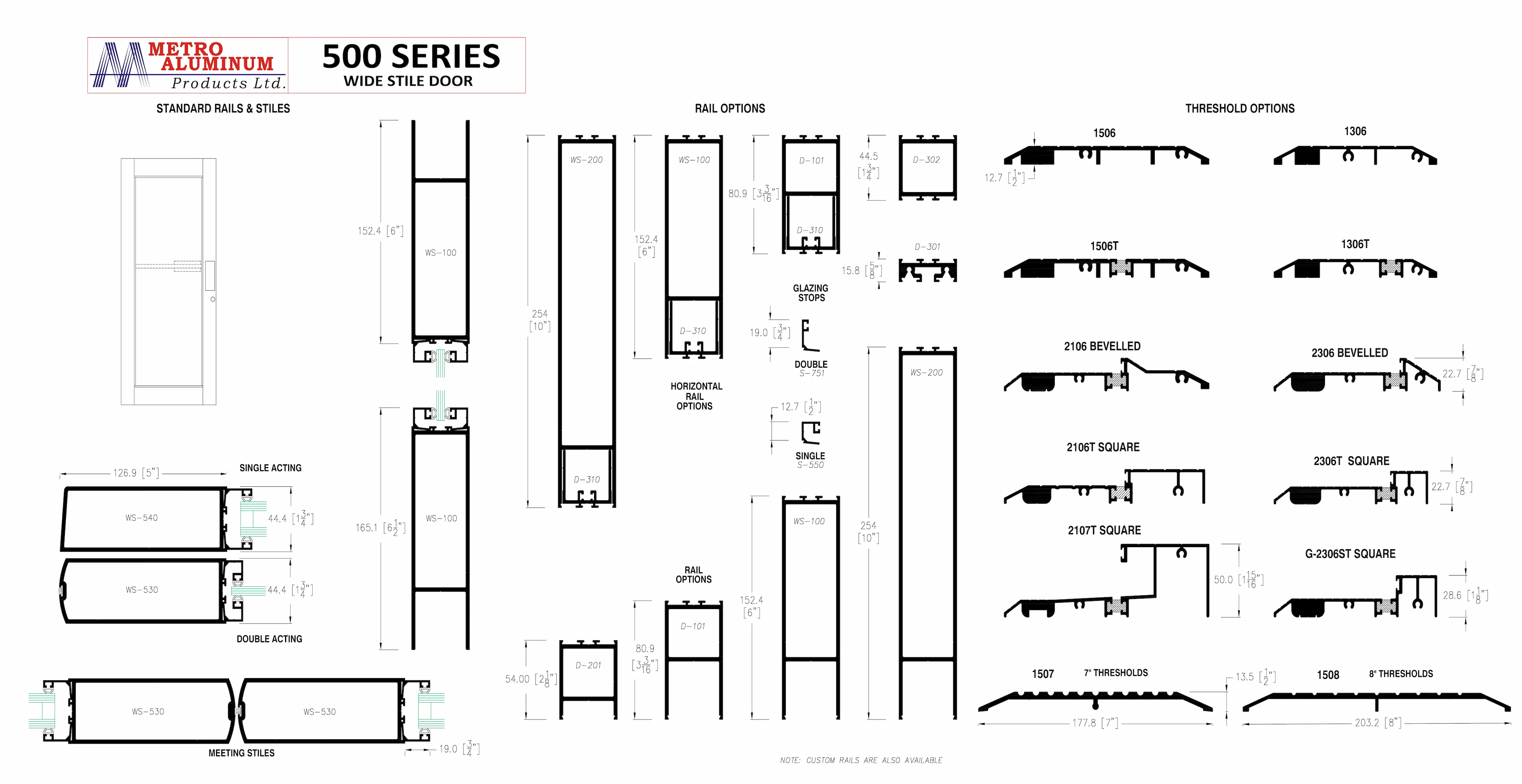

Stile Width: 5" (127 mm)

Top Rail: 6" (152.4 mm) (optional: 2 1/8" [54 mm], 3 3/16" [81 mm], or 10" [254 mm])

Bottom Rail: 6" (152.4 mm) (optional: 2 1/8" [54 mm], 3 3/16" [81 mm], or 10" [254 mm])

Mid-Rail Options: 5/8" (15.9 mm), 1 3/4" (44.5 mm), 3 3/16" (81 mm), 6" (152.4 mm), or 10" (254 mm)

Door Thickness: 1 3/4" (44.5 mm)

Glazing: Single (5 mm / 6 mm) or double glazed (15/16" overall thickness)

Wide Stile Design: Provides a substantial and impressive aesthetic suitable for architectural statement pieces.

Single and Double Glazed Stops: Accommodates different glazing configurations for enhanced performance and design flexibility.

Material Strength: T6-temper aluminum for enhanced strength and durability

Heavier Duty Construction: Built for durability and longevity, ensuring reliable performance and high-traffic areas.

Compatibility with Metro Framing: Seamlessly integrates with Metro framing systems for a cohesive installation.

Welded Corners: Each corner is welded & bolted for enhanced structural integrity.
