250T Series Narrow Stile Thermally Broken Door

The 250T Thermally Broken Narrow Stile Door is an enhanced version of our popular 250 Narrow Stile Door, offering superior thermal performance and energy efficiency.

Key features include:

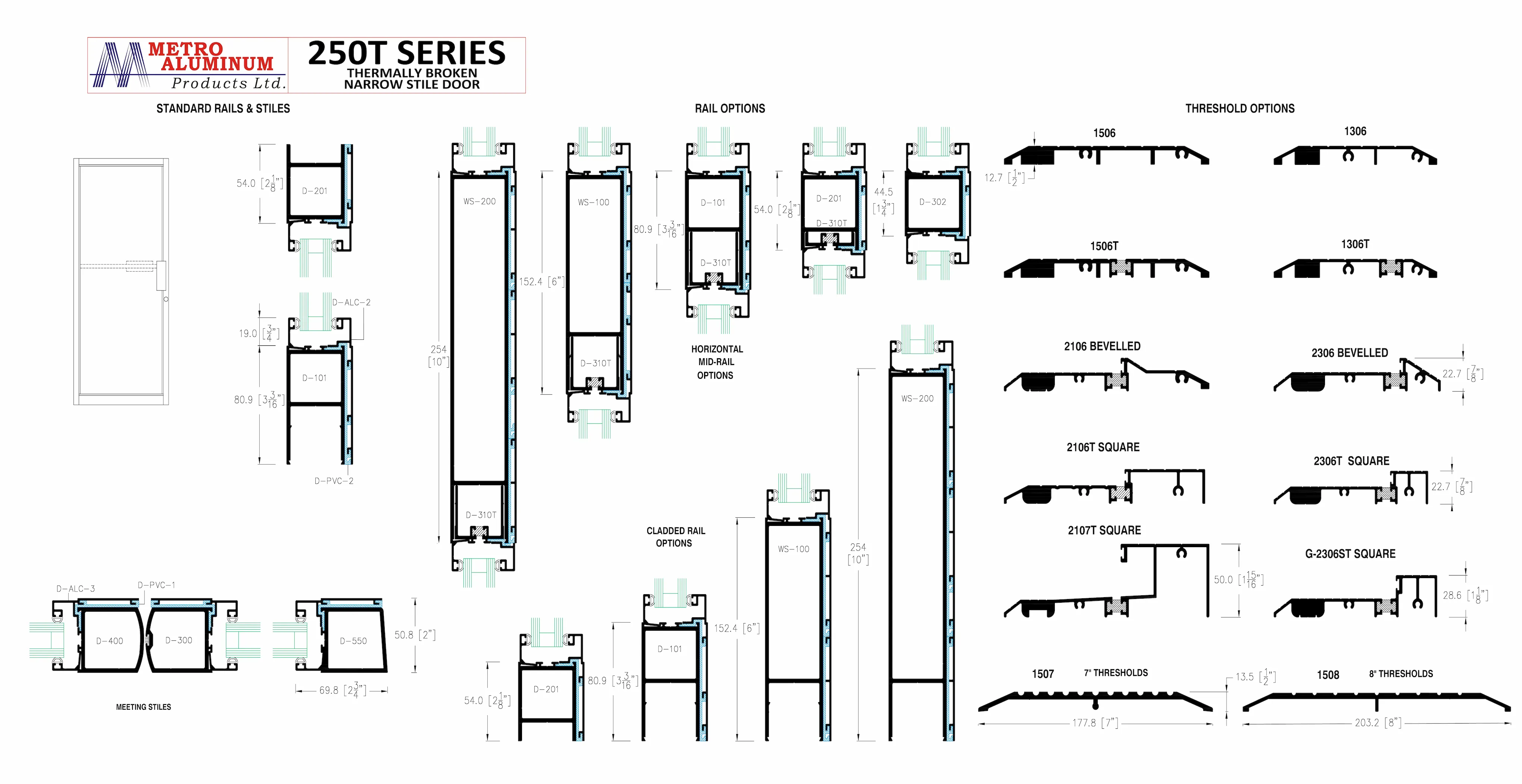

Stile Width: 2" (50.8 mm)

Top Rail: 2 1/8" (54 mm) (optional: 3 3/16" [81 mm], 6" [152.4 mm], or 10" [254 mm])

Bottom Rail: 2 1/8" (54 mm) (optional: 3 3/16" [81 mm], 6" [152.4 mm], or 10" [254 mm])

Mid-Rail Options: 1 3/4" (44.5 mm), 2 1/8" (54 mm), 3 3/16" (81 mm), 6" (152.4 mm), or 10" (254 mm)

Door Thickness: 2" (50.8 mm)

Glazing: Double glazed (15/16" overall thickness)

Thermally Broken/Insulated Rails and Stiles: Ensuring optimal thermal insulation and reducing energy loss.

Sealed Unit Glazing: Providing enhanced weather resistance and improved insulation.

Material Strength: T6-temper aluminum for enhanced strength and durability

Compatibility with Metro Thermally Broken Framing: Seamlessly integrates with Metro's thermally broken framing systems for a cohesive and efficient installation.

Welded Corner: Each corner is welded & bolted for enhanced structural integrity.
