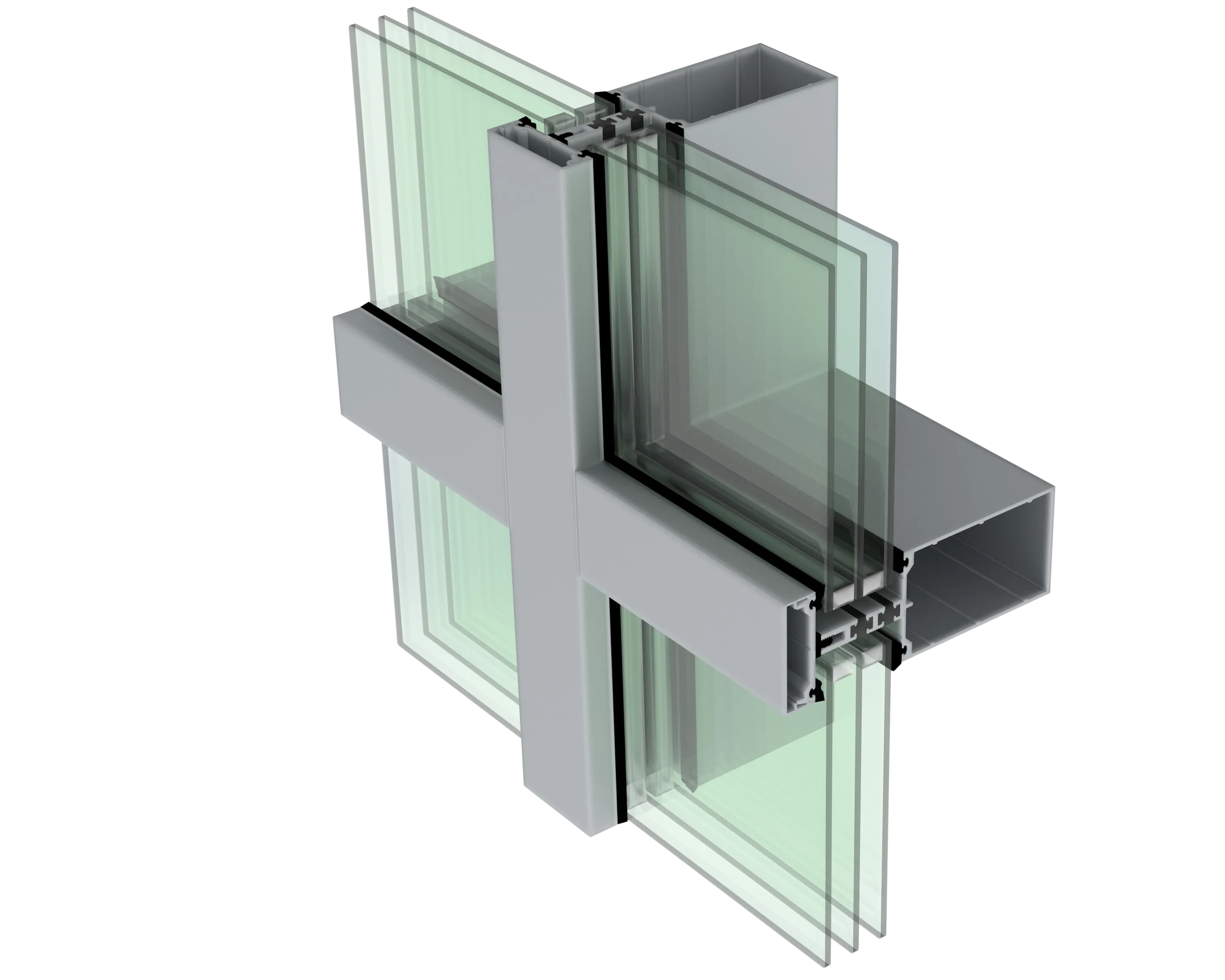

2500THP Series Triple Glazed Curtain Wall

The 2500THP Series is a high-performance, triple-glazed curtain wall system with a 2 1/2" (63.5 mm) sightline. It features a double poured thermal pocket for superior thermal efficiency, making it ideal for energy-conscious projects requiring large-profile framing.

System Features:

Sightline: 2 1/2" (63.5 mm)

Back Section Depths: 4" (101.6 mm), 5 1/4" (133.4 mm)

Glazing: Triple glazed – 6 mm / 1/2" spacer / 6 mm / 1/2" spacer / 6 mm (approx. 1 3/4" overall thickness)

Thermal Break: Double poured thermal pocket for triple-glazed applications

Material Strength: T6-temper aluminum for enhanced strength and durability

Thermal Enhancements: Optional fiberglass pressure plate to further reduce U-values

Door Compatibility: 1" door adapter available

Corner Options: Captured corner and butt-glazed SSG corner options

Spandrel/Backpan Integration: Compatible adapter options for seamless integration

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for low- to mid-rise commercial projects requiring superior thermal performance
