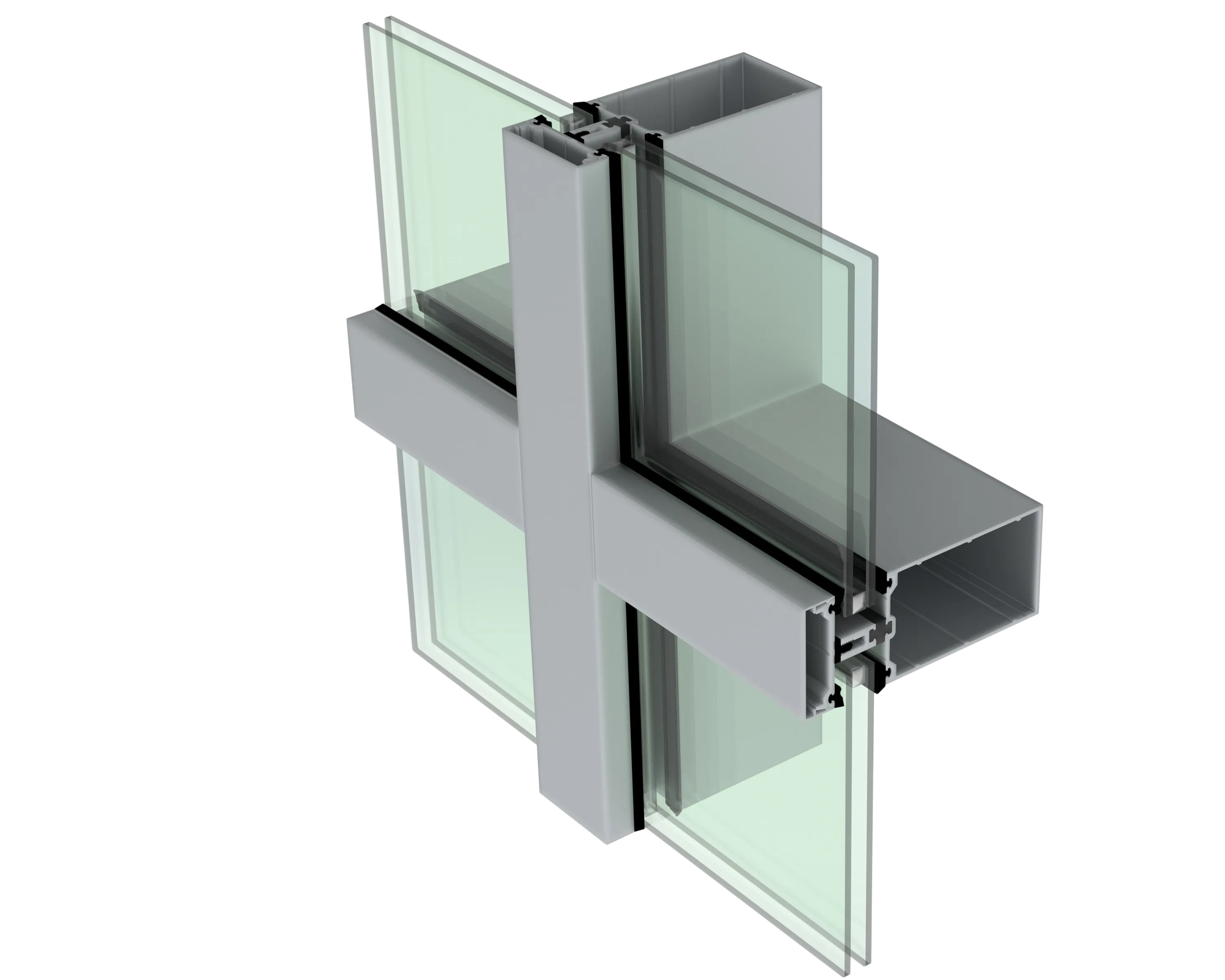

2500T Series Thermally Broken Curtain Wall

The 2500T Series is a thermally broken curtain wall system with a 2 1/2" (63.5 mm) sightline and a poured-and-debridged thermal break for enhanced energy performance. Designed for strength and efficiency, it’s suited for commercial applications requiring larger profile sizes.

System Features:

Sightline: 2 1/2" (63.5 mm)

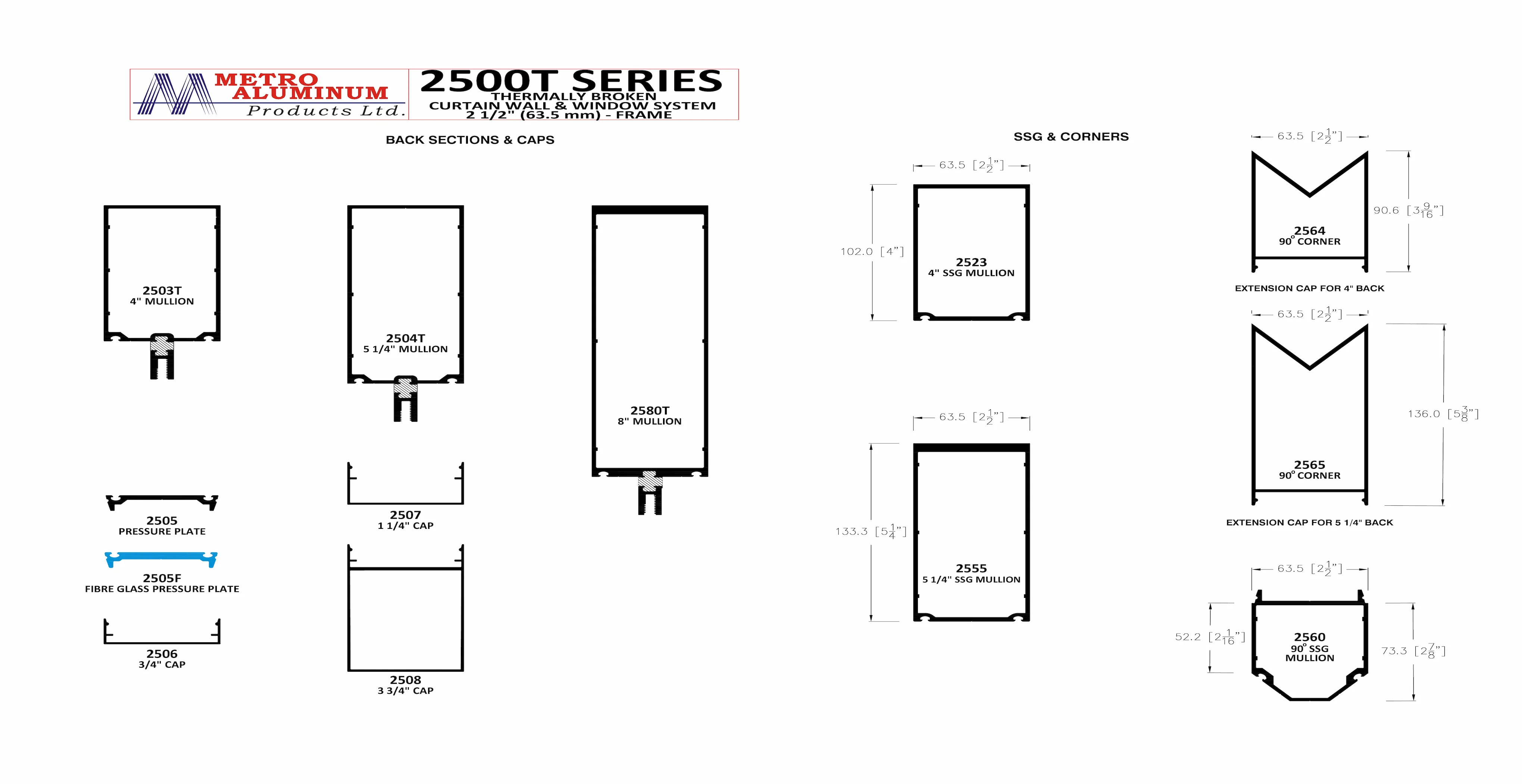

Back Section Depths: 4" (101.6 mm), 5 1/4" (133.4 mm), 8" (203.2 mm) (heavy wall)

Thermal Break: Poured thermal pocket

Material Strength: T6-temper aluminum for enhanced strength and durability

Thermal Enhancements: Optional fiberglass pressure plate to further reduce U-values

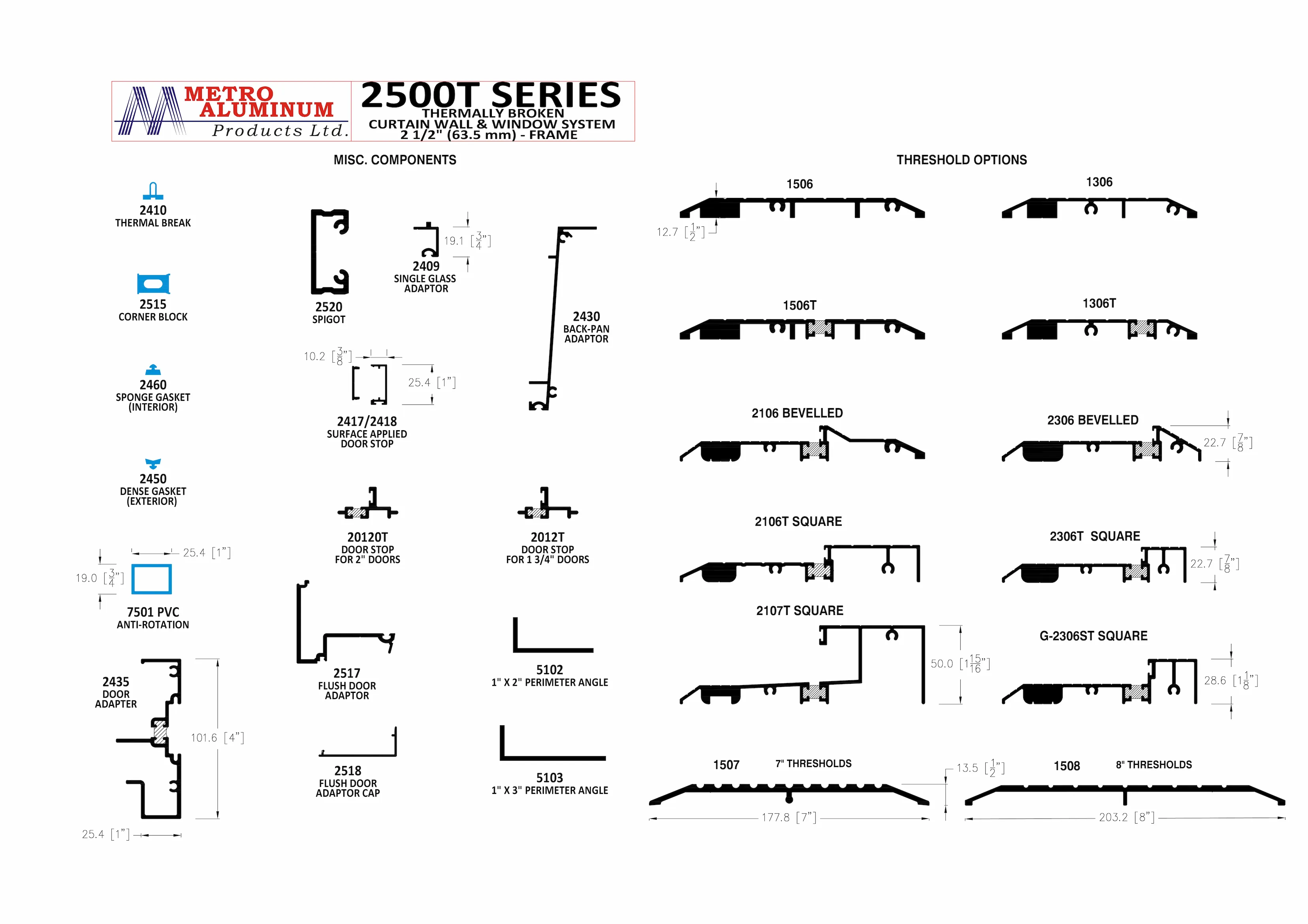

Door Compatibility: Flush door adapter and 1" door adapter available

Corner Options: Captured corner and butt-glazed SSG corner options

Spandrel/Backpan Integration: Compatible adapter options for seamless integration

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for low- to mid-rise commercial projects
