2500 Series Curtain Wall

The 2500 Series is a robust, non-thermally broken curtain wall system featuring a 2 1/2" (63.5 mm) sightline and a PVC thermal break in the nose. Designed for structural strength, it is ideal for applications requiring larger framing members.

System Features:

Sightline: 2 1/2" (63.5 mm)

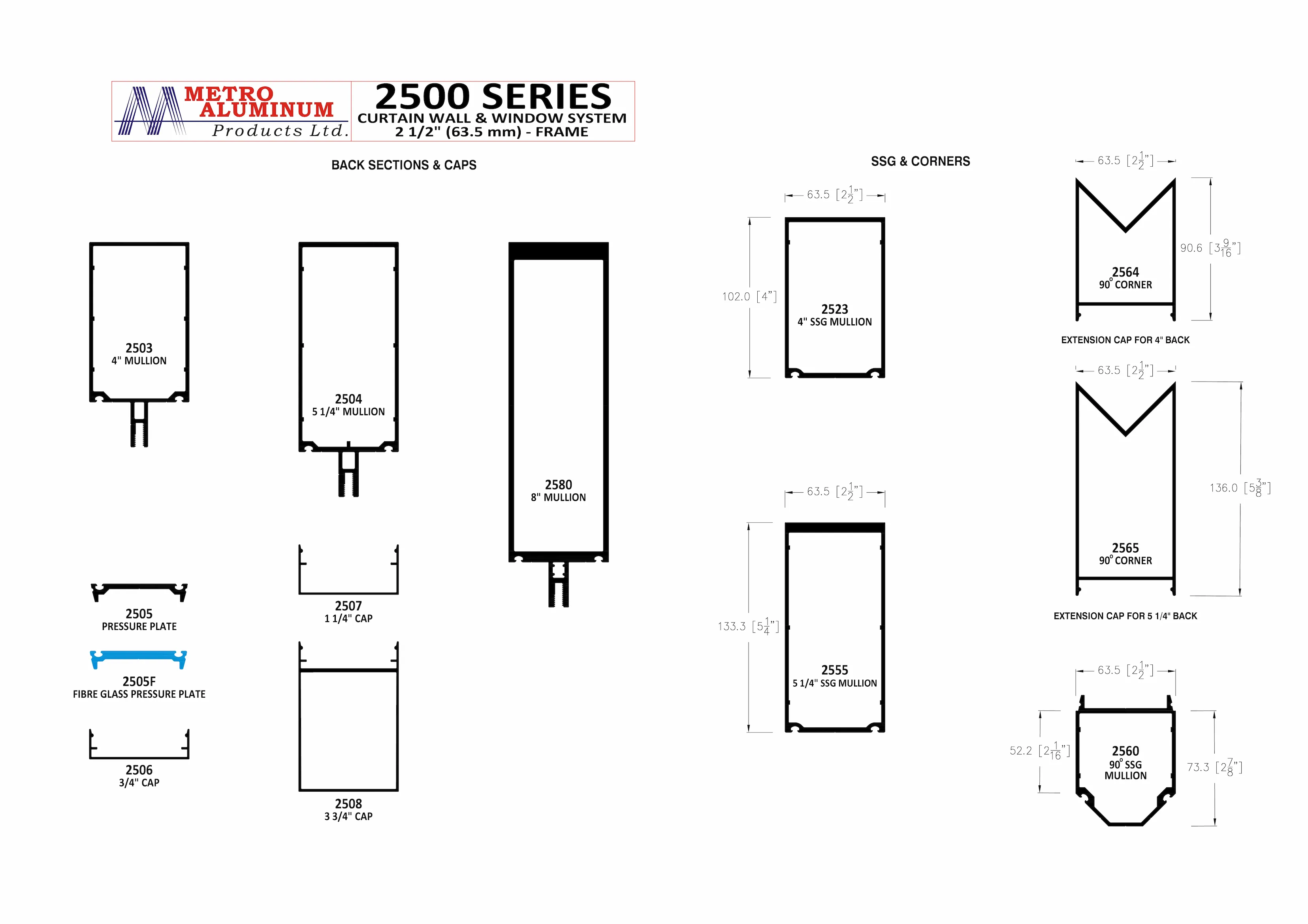

Back Section Depths: 4" (101.6 mm), 5 1/4" (133.4 mm), 8" (203.2 mm) (heavy wall)

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness)

Thermal Enhancements: Optional fiberglass pressure plate to improve thermal performance

Material Strength: T6-temper aluminum for enhanced strength and durability

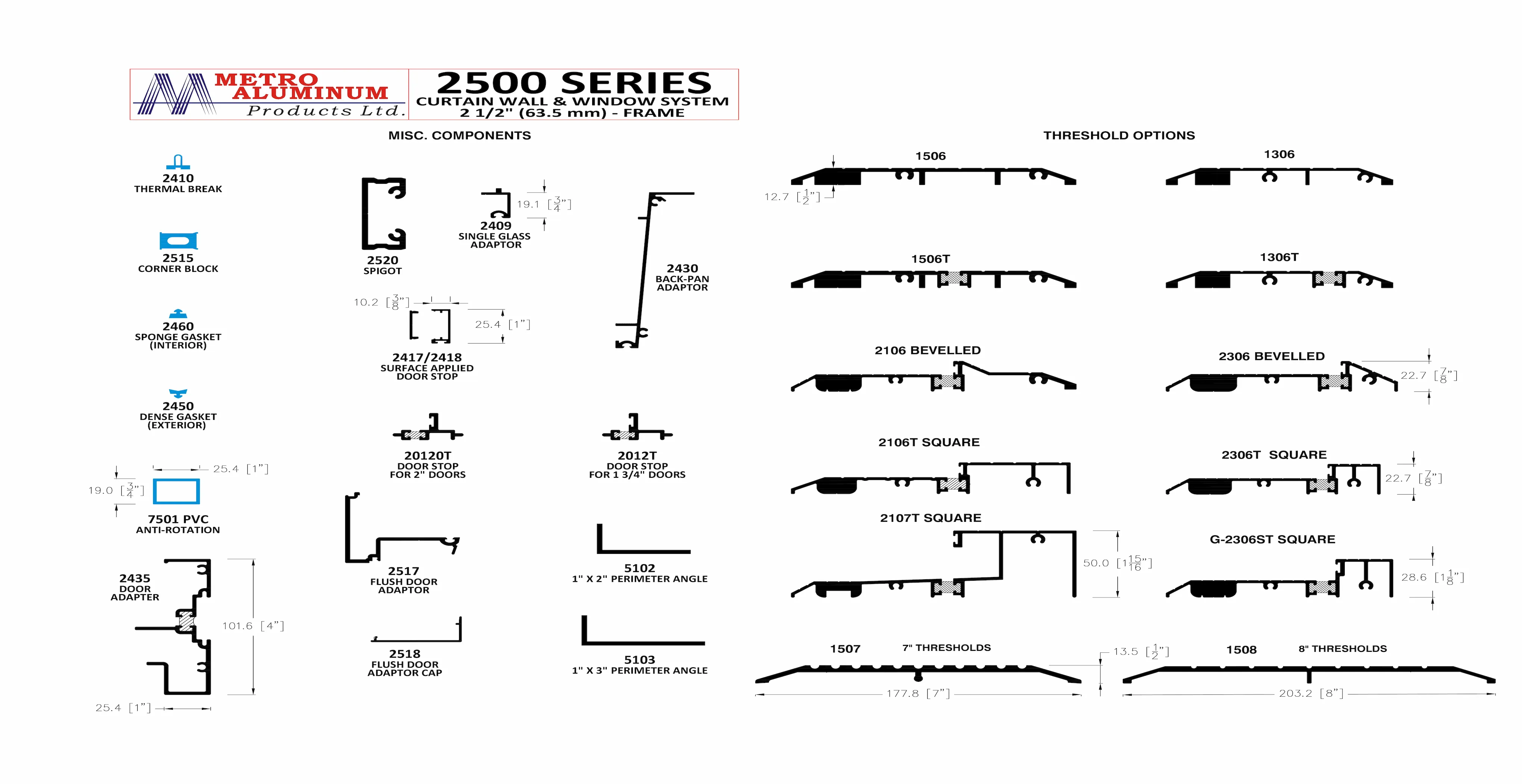

Door Compatibility: Flush door adapter and 1" door adapter available

Corner Options: Captured corner and butt-glazed SSG corner options

Spandrel/Backpan Integration: Compatible adapter options for seamless integration

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for low- to mid-rise commercial projects
