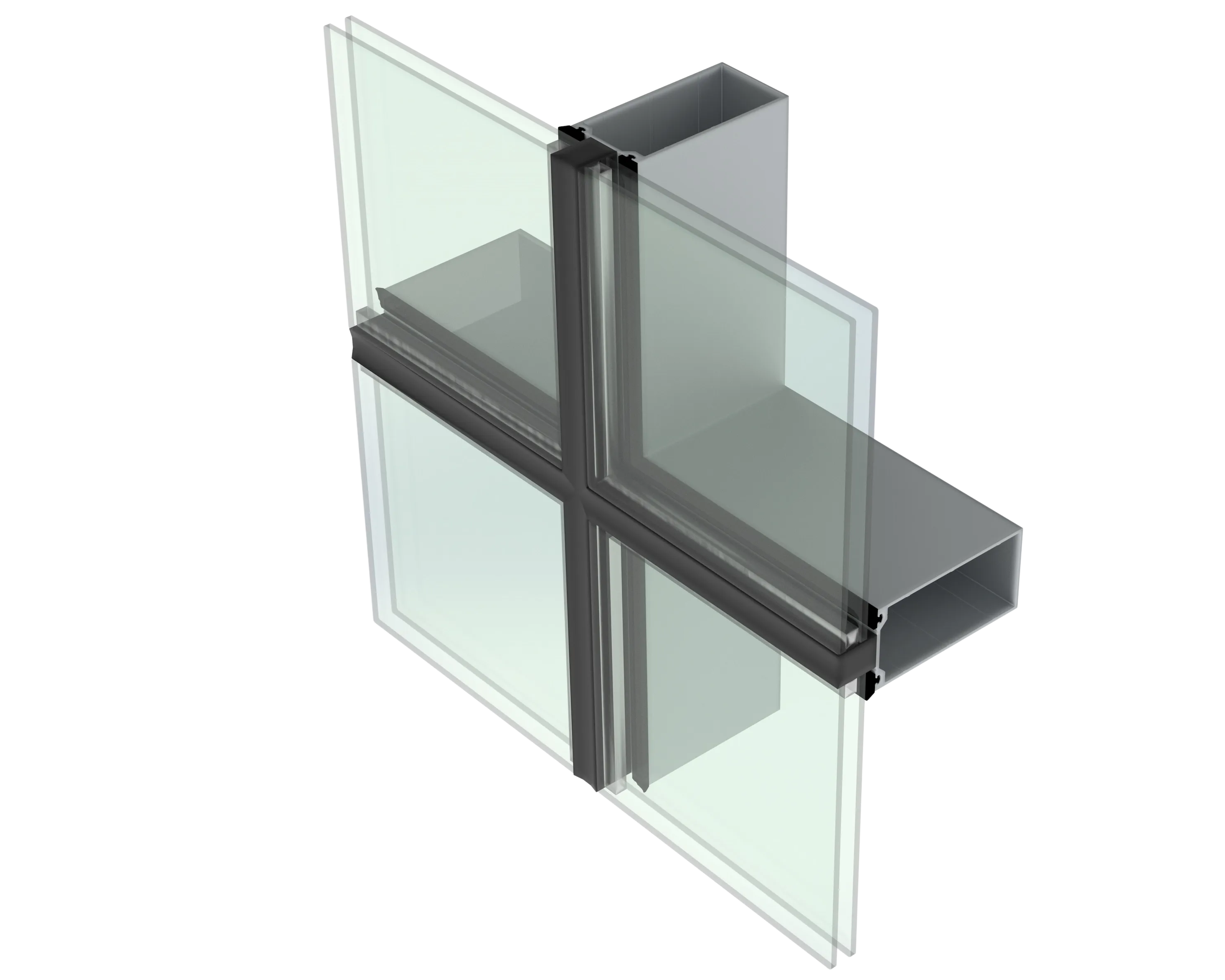

2400T Series Thermally Broken Curtain Wall

The 2400T Series is a fully thermally broken curtain wall system featuring a 2" (50.8 mm) sightline. It utilizes a poured thermal pocket for enhanced thermal performance, making it ideal for energy-conscious designs.

System Features:

Sightline: 2" (50.8 mm)

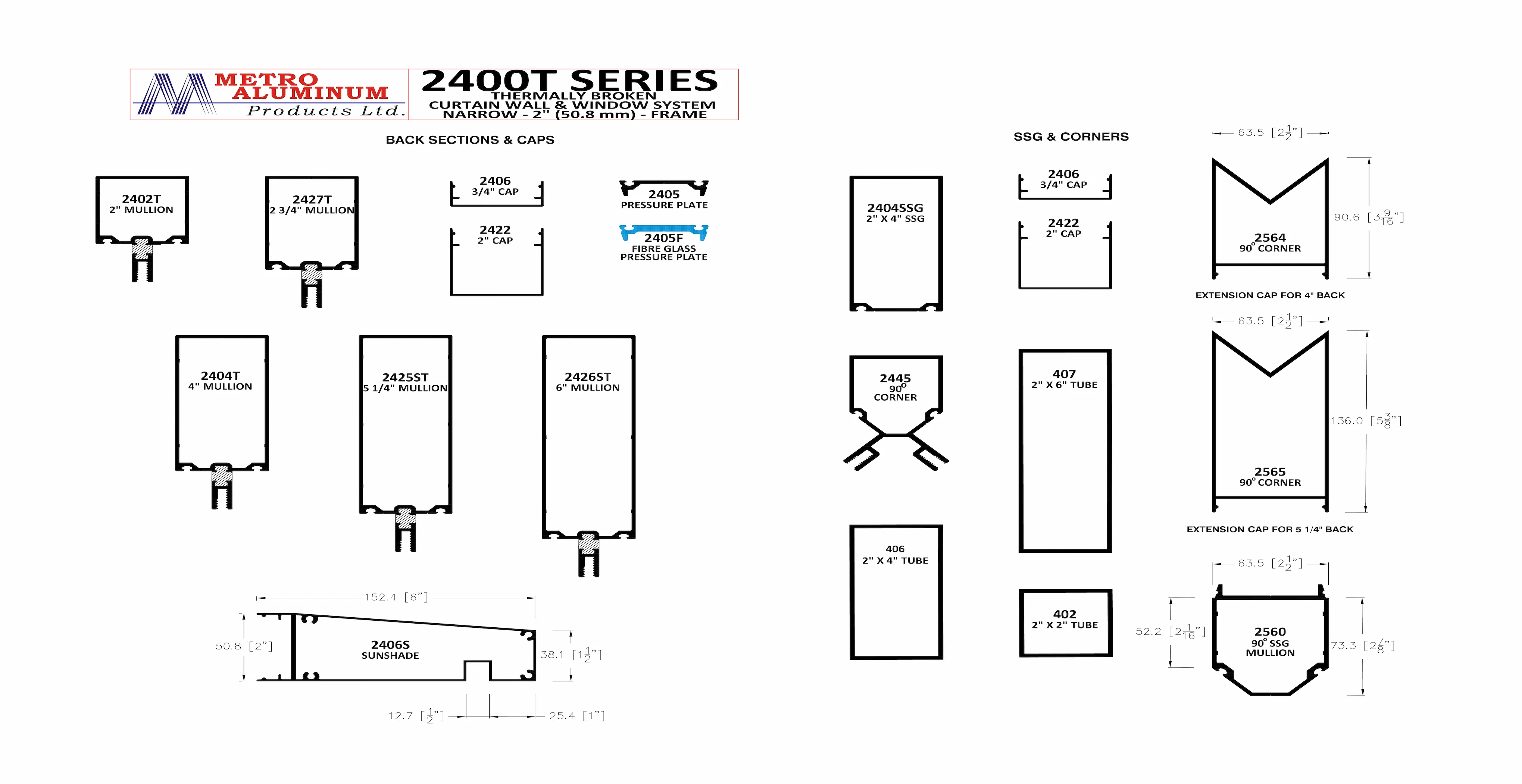

Back Section Depths: 2" (50.8 mm), 2 3/4" (69.9 mm), 4" (101.6 mm), 5 1/4" (133.4 mm), 6" (152.4 mm)

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness)

Thermal Break: Poured thermal pocket

Material Strength: T6-temper aluminum for enhanced strength and durability

Thermal Enhancements: Optional fiberglass inserts for improved thermal performance

Sunshade Options: Snap-on sunshade cap and extended cap profiles

Door Compatibility: Flush door adapter and 1" door adapter available

Corner Options: Captured corner and butt-glazed SSG corner options

Spandrel/Backpan Integration: Compatible adapter options for seamless integration

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for low- to mid-rise commercial projects
