2400 Series Curtain wall

The 2400 Series is a versatile, non-thermally broken curtain wall system featuring a 2" (50.8 mm) sightline. It incorporates a PVC thermal break in the nose to provide improved thermal performance without a fully thermally broken design.

System Features:

Sightline: 2" (50.8 mm)

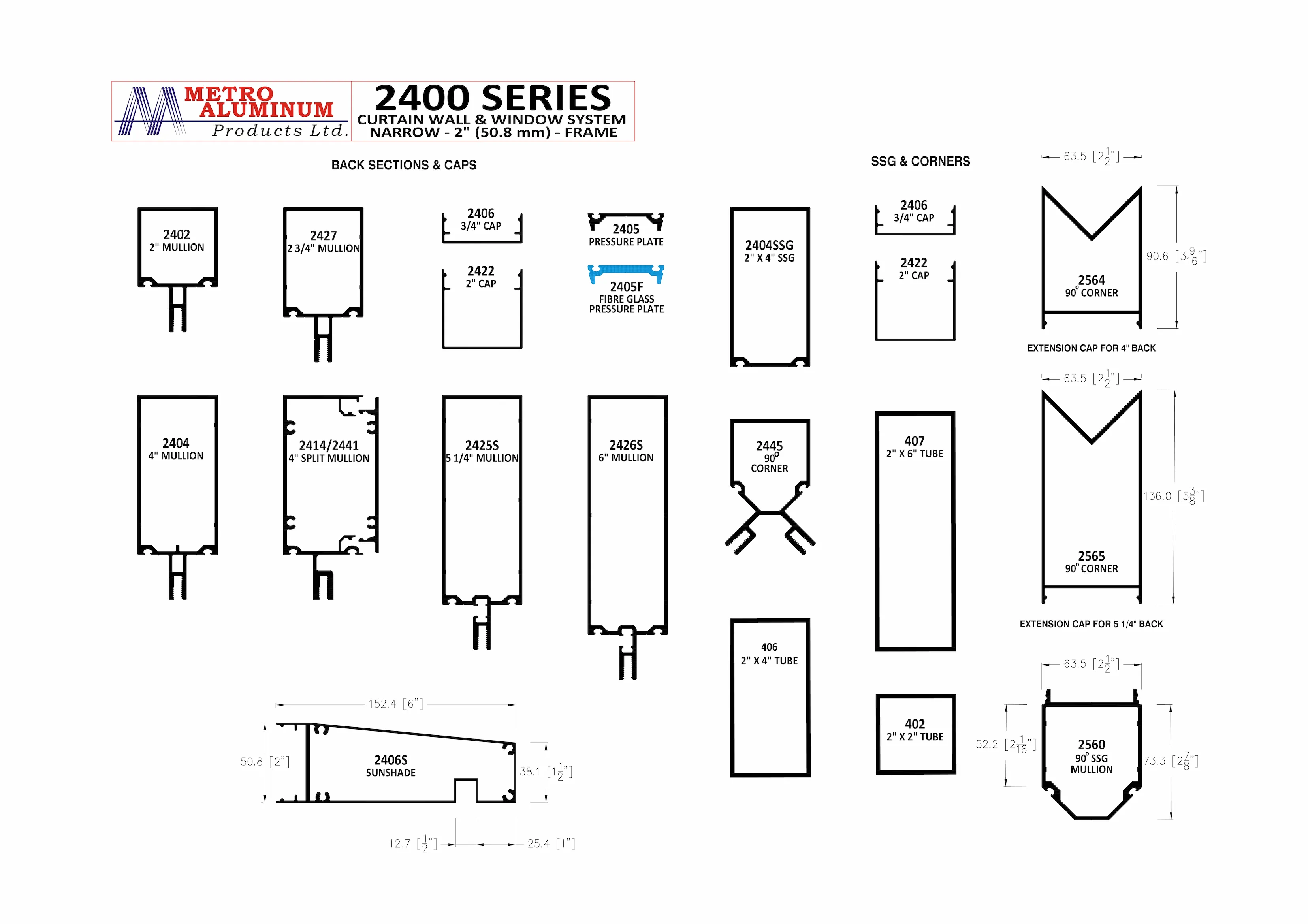

Back Section Depths: 2" (50.8 mm), 2 3/4" (69.9 mm), 4" (101.6 mm), 4" split mullion (101.6 mm), 5 1/4" (133.4 mm), 6" (152.4 mm)

Glazing: Single (5 mm / 6 mm) or double glazed (1" overall thickness)

Thermal Enhancements: Optional fiberglass pressure plate to further reduce U-values

Sunshade Options: Snap-on sunshade cap and extended cap profiles

Material Strength: T6-temper aluminum for enhanced strength and durability

Door Compatibility: Flush door adapter and 1" door adapter available

Corner Options: Captured corner and butt-glazed SSG corner options

Spandrel/Backpan Integration: Compatible adapter options for seamless integration

Finishes: Clear anodized, bronze anodized, black anodized, with custom anodizing and paint options available

Applications: Ideal for low- to mid-rise commercial projects
